High Output Duplex Paper Board Making Machine Cardboard Production Line

Name: High Output Duplex Paper Board Making Machine Cardboard Production Line
Brand: PINGAN
Price: 1 USD

Quality High Output Duplex Paper Board Making Machine Cardboard Production Line for sale

Brand Name : PINGAN

Model Number : 4900mm

Certification : ISO9001:2008

Place of Origin : Henan, China

MOQ : 1set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 5sets/year

Delivery Time : 8month

Packaging Details : wooden case

Item : paper board making equipment

Machine width : 4900mm

Transverse grammage : ≤1.5%

Transverse moister : ≤ ±1.0%

Headbox lip width : 5300mm

Over flow : 5%

Contact Now

Duplex board production line advanced board paper making machine

Description of hydraulic headbox

The duplex board proudciton line equips with three sets hydraulic headbox and with dilution water system. The headbox is composed of pulp feed pipe, transition chamber, attenuation chamber, turbulence generator and lip plate etc. Each parts are connected by bolts.

Pulp through single side square taper main pipe and pipe bundle to headbox. The other end of the square taper pipe design 10% reflux, through the reflux control valve to realize equal pressure inside of square taper pipe. Square taper main pipe has detection window and sight glass.

Main components of the hydraulic headbox

Pulp feed pipe
Equal pressure chamber and attenuation chamber
Turbulence gernerator
Lip plate section
Temperature compensation system
Upper lip plate vertical adjustment mechanism
Upper lip plate micrometer regulator
Injection point adjustment of upper lip plate
Deckle
Breast roll water spray pipe

High Output Duplex Paper Board Making Machine Cardboard Production Line

Product Tags:

chipboard paper making machine

paper board making equipment

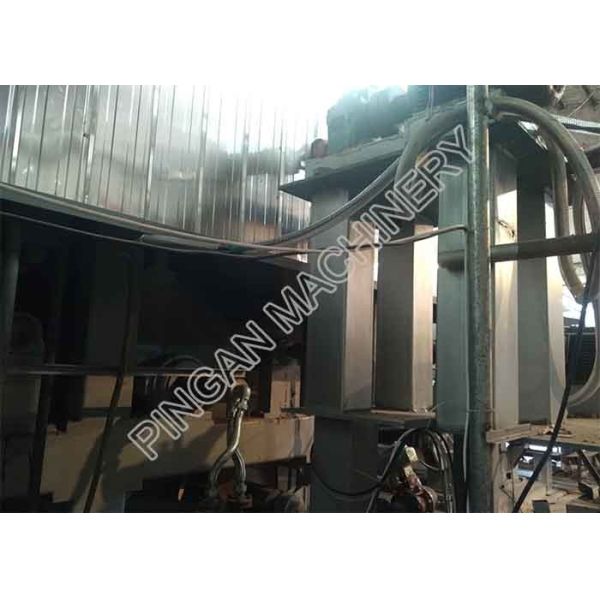

High Output Duplex Paper Board Making Machine Cardboard Production Line Images
